10mm White Plastic Spacer Washers Metric Threaded Hex Spacer M3 For
Hexagonal spacers with metric threaded hole for application on PCB
Excellent corrosion resistance

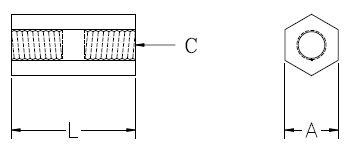

Standard hex spacer cross width is 5.5 mm and total length is 10 mm
with inside thread full hole M3 for thread rod assembly .
Material : PA 66
Color : White
Fire resistance grade : 94V-2
We offer more specifications for hex spacers as following
Plastic hex spacer is mainly used for fixing PCB and confirm
distance of parts .
◆ High Tensile Strength
The tensile strength can be up to 80 Mpa
◆ Low Temperature Resistance
Hex spacer can be worked 40 degree below zero .
◆ Impact Resistance
The strongest impact resistance is up to 100 (kJ/m2 )
◆ Perfect Isolation
The volume Resistivity is high and very good on resistance
breakdown voltage .
◆ Be used in various climates
The hex spacer is made of plastic ( nylon ) that can work from 50
degree below zero to 280 degree , it is applicable for the most
areas in the world .
◆ Perfect Heat Resisting Property
Nylon hex spacer can work continuously under 150 degree temperature
,and is not deformed when the temperature is up to 250 degree for
the improved screws .
|Model No.||Specification||Standard QTY/bag|
※ Good quality with cheap price
※ Quick responded and satisfied sale-after service
※ Small order is accepted
※ Abundant stock for quick delivery
※ Up to 99% qualified rate
