Semi Transparent Round Nylon Spacer Bushings Insulated For Wire Assembly

Brand Name : VDL
Model Number : PS1015
Certification : ISO
Place of Origin : China
MOQ : Negotiation
Price : Negotiation
Payment Terms : L/C, T/T, Western Union , Paypal
Supply Ability : 300 ,000 pcs per month
Delivery Time : 30 days
Packaging Details : 10000 pcs for a ccarton with in bulk , dimension is 22 X 20 X 25 cn, 500 cartons for a 20 ft container
Material : Nylon
Property Class : PA66
Fire Resistance : UL94V-2
OD : 10 mm
ID : 6 mm
Length : 15 mm
Color : White
Thikcness : 2 mm
Contact Now

Semi Transparent Round Nylon Spacer Bushings Insulated For Wire Assembly


Plastic round spacers bushings are not with threads for wire assembly , semi transparent plastic with outstanding fire resistant performance , they are widely used to electric items .


Material

Plastic round spacers bushings are made of nylon PA66 .


Key features


Insulated material


Resistance to fire


Not easy to be aged


Water proof


Wear resistant


Performances


Physical Performance
Density ( g/cm3)1.14
Water absorption %3
Shrinkage %1~2
Mechanical Property
Tensile strength MPa60~80
Elongation at break %2.2
Bending strength MPa100~120
Modulus of elasticity for bending MPa2000 ~3000
Notched Impact Strength(J/m)60~100
HR hardness118
Electrical Performance
Dielectric constant1.63
Arc resistance sec130~140
Specific volume resistance Ω·cm1.83×1015
dissipation factor100~400
Dielectric strength(kV/mm)20~30
Thermal Performance
Normal working temperature ℃80~120
Brittle temperature ℃-30
Melting temperature ℃252
Pyrogenic decomposition temperature ℃350
Matin heatproof ℃50~60

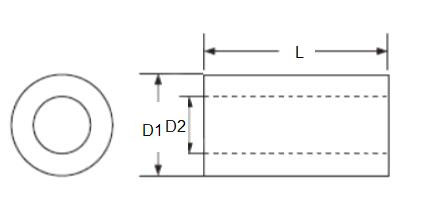

Specification


Outer diameter10
Inner diameter6
Length15
Thickness±0.1

Unit : mm


Tolerances


Normal SizesLevel
TG7
WNW
1-30.130.2
3-60.20.29
6-100.290.35
10-180.350.42
18-300.420.5
30-500.50.6
50-800.60.9

1 ,value for each level means " ± " tolerance .

2 , " W " means tool specific dimensions , " NW ' means non tool specific dimensions .
